·Base in cast iron material with blue painting finish
·With one/two built-in rod holders at one side and center to accept a Dia.10mm rod
·Supplied with three types of bases, depending on applications
Rectangular Base
Base in cast iron material, rod in chromium plated iron
| P/N | BASE DIMENSION(mm) | ROD LENGTH（mm） | PACKING |
4030-1104* 4030-1105* 4030-1106* 4030-2001 4030-2002 | 250(L)x160(W) 200(L)x125(W) 160(L)x100(W) 200(L)x140(W) 300(L)x180(W) | 500 500 500 600 700 | 10pcs/carton 10pcs/carton 10pcs/carton 10pcs/carton 10pcs/carton |
Base and rod in stainless steel material
| P/N | BASE DIMENSION(mm) | ROD LENGTH（mm） | PACKING |
4030-8010 4030-8011 4030-8012 4030-8013 | 175(L)x100(W) 225(L)x125(W) 250(L)x150(W) 300(L)x150(W) | 450 500 600 700 | 10pcs/carton 10pcs/carton 10pcs/carton 10pcs/carton |
Tripod Base
Base in cast iron material, rod in chromium plated iron
| P/N | BASE DIMENSION(mm) | ROD LENGTH（mm） | PACKING |
4030-3001 | 135 | 600 | 10pcs/carton |

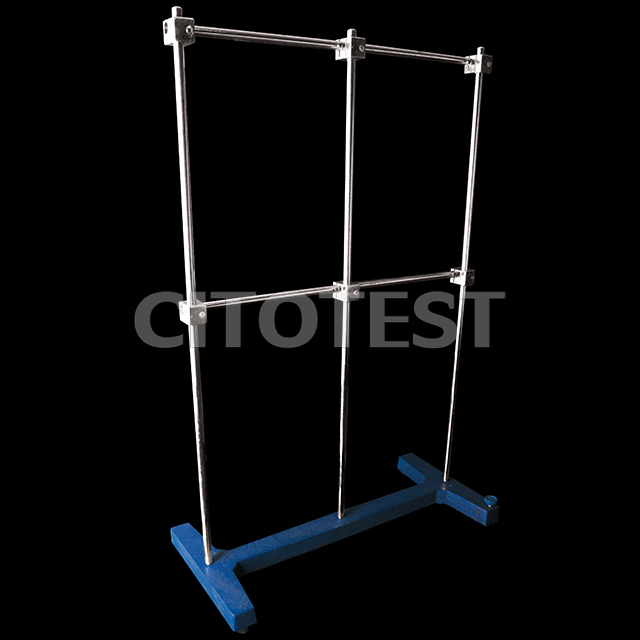

H-Shaped Base
Base in cast iron material, rods in nickel-plated iron material
| P/N | BASE DIM.(mm) | ROD DIA.(mm) | VERTICAL ROD LENGTH(mm) | HORIZONTAL ROD LENGTH(mm) | PACKING | |
4030-3002 4030-3003 | 530(L)x250(W) 530(L)x250(W) | 10 12 | 800 800 | 500 500 | 1pc/box, 10pcs/carton 1pc/box, 10pcs/carton | |
