· Stainless steel, resistant to corrosion and autoclavable at 121℃
· Highly polished surface, no edges and sharps
· Wide base provides stability and prevents tipping
· Different dimension and size of hole optional

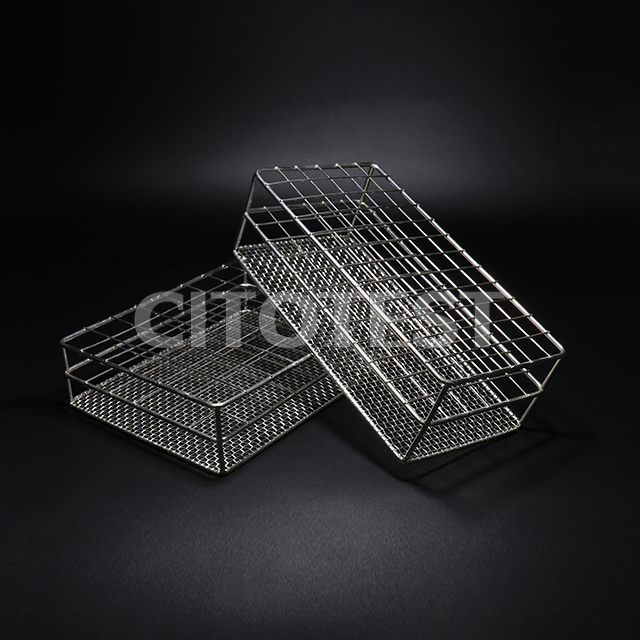

Stainless Steel, Wire Constructed
P/N | PLACE LAYOUT | MAX.TUBE ø (mm) | DIM. (mm) | N.W. (kg) | VOL. (m3) | PACKING |
4050-4621 4050-4622 4050-4623 4050-4624 4050-4625 4050-4626 4050-4627 4050-4628 4050-4629 4050-4630 | 12 (3 x 4) 50 (5 x 10) 12 (2x6) 24 (3x8) 72(6x12) 100(10x10) 12 (2x6) 24 (3x8) 48 (6x8) | 13 13 13 18 18 18 18 25 25 25 | 69 x 55 x 35 167 x 86 x 60 166 x 166 x 60 131 x 49 x 60 174 x 71 x 60 259 x 133 x 85 216 x 216 x 85 180 x 65 x 60 238 x 94 x 60 238 x 180 x 60 | 0.088 0.225 0.343 0.134 0.199 0.392 0.472 0.187 0.278 0.411 | 0.0001 0.0009 0.0018 0.0004 0.0008 0.0028 0.0039 0.0007 0.0013 0.0025 | 120pcs /carton 48pcs /carton 36pcs /carton 80pcs /carton 64pcs /carton 30pcs /carton 24pcs /carton 64pcs /carton 36pcs /carton 24pcs /carton |
· Stainless steel, resistant to corrosion and autoclavable at 121℃
· Highly polished surface, no edges and sharps
· Wide base provides stability and prevents tipping
· Different dimension and size of hole optional
Stainless Steel, Wire Constructed
P/N | PLACE LAYOUT | MAX.TUBE ø (mm) | DIM. (mm) | N.W. (kg) | VOL. (m3) | PACKING |
4050-4621 4050-4622 4050-4623 4050-4624 4050-4625 4050-4626 4050-4627 4050-4628 4050-4629 4050-4630 | 12 (3 x 4) 50 (5 x 10) 12 (2x6) 24 (3x8) 72(6x12) 100(10x10) 12 (2x6) 24 (3x8) 48 (6x8) | 13 13 13 18 18 18 18 25 25 25 | 69 x 55 x 35 167 x 86 x 60 166 x 166 x 60 131 x 49 x 60 174 x 71 x 60 259 x 133 x 85 216 x 216 x 85 180 x 65 x 60 238 x 94 x 60 238 x 180 x 60 | 0.088 0.225 0.343 0.134 0.199 0.392 0.472 0.187 0.278 0.411 | 0.0001 0.0009 0.0018 0.0004 0.0008 0.0028 0.0039 0.0007 0.0013 0.0025 | 120pcs /carton 48pcs /carton 36pcs /carton 80pcs /carton 64pcs /carton 30pcs /carton 24pcs /carton 64pcs /carton 36pcs /carton 24pcs /carton |
