·Stainless steel with ceramic coated plate, resistant to corrosion and easy to clean
·Motor with electronic speed control, speed range of 100 to 1500rpm
·Separated safety circuit, heating temperature up to 280℃, automatically stops heating once exceed secure temperature
·LED displays target and actual temperatures, as well as set and actual speed
·External temperature sensor PT1000 is available and control accuracy of ±1°C, real-time control medium temperature
| SPECIFICATIONS | MS-H280-PRO |
| Electrical Stirring position Max. stirring quantity[H2O] Max. magnetic bar[L] Motor type Motor rating input/output Speed range Speed display and accuracy Work plate material Dimension of work plate Heating output Heating temperature range Temperature display Temperature accuracy Safety temperature External temperature sensor Dimensions[W×D×H] Weight RS232 connection Protection class acc. DIN EN60529 Work environment | 100-120/200-240V, 50/60Hz, 515W 1 3L 50 mm DC brushless motor 5/3 W 100-1500 rpm LED Stainless steel with ceramic coated φ135 mm 500 W RT-280℃ LED ±1(<100℃), ±1%(>100℃) 320℃ PT1000, ±0.5℃ 150×260×80 mm 1.8 kg No IP21 5-40℃, 80%RH |
| P/N | TYPE | DESCRIPTION | |
| 4499-0052 4499-0053 4499-0054 4499-0055 4499-0010 4421-9900 4421-9901 4499-0066 | 18900080 18900081 18900082 18900083 PT1000-A PT1000-B PT1000-C 18900148 | Reaction block, aluminum, for 50ml round flask Reaction block, aluminum, for 100ml round flask Reaction block, aluminum, for 250ml round flask Reaction block, aluminum, for 500ml round flask Temperature sensor, 230mm length Temperature sensor with glass coated, 230mm length Temperature sensor, 100mm length Support clamp of PT1000, suitable for MS-H280-Pro | |
| TYPE | DESCRIPTION | POWER SUPPLY | P/N | ||

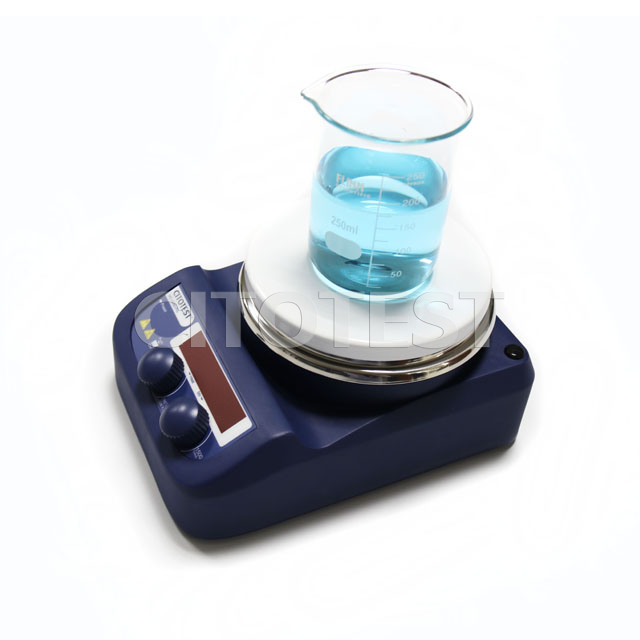

| MS-H280-Pro | LED digital magnetic hotplate stirrer, the heating temperature is up to 280°C, stainless steel with ceramic coated hotplate | Cn Plug, 220V/50Hz/60Hz Euro Plug, 200-240V/50Hz/60Hz UK Plug, 200-240V/50Hz/60Hz USA Plug, 100-120V/50Hz/60Hz | 4421-5001 4421-5002 4421-5003 4421-5004 | ||
