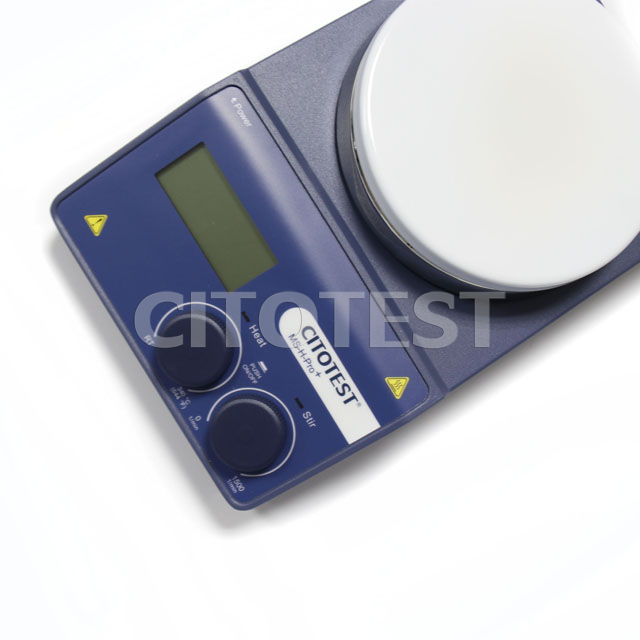

LCD Digital Magnetic Hotplate Stirrer(MS-H-Pro+)
You are here: Home » Products » Mixing and Centrifugation » LCD Digital Overhead Stirrer » LCD Digital Magnetic Hotplate Stirrer(MS-H-Pro+)
Share to:

LCD Digital Magnetic Hotplate Stirrer(MS-H-Pro+)

  • CITOTEST

·Stainless steel with ceramic coated plate, resistant to corrosion and easy to clean
·Motor with electronic speed control, speed range of 100 to 1500rpm
·Separated safety circuit, heating temperature up to 340℃, automatically stops heating once exceed secure temperature
·LCD displays target and actual temperatures, as well as set and actual speed
·External temperature sensor PT1000 is available and control accuracy of ±1°C, real-time control medium temperature

SPECIFICATIONSMS-H-PRO+
Electrical
Stirring position
Max. stirring quantity[H2O]
Max. magnetic bar[L]
Motor type
Motor rating input/output
Speed range
Speed display and accuracy
Work plate material
Dimension of work plate
Heating output
Heating temperature range
Temperature display
Temperature accuracy
Safety temperature
External temperature sensor
Dimensions[W×D×H]
Weight
RS232 connection
Protection class acc. DIN EN60529
Work environment
100-120/200-240V, 50/60Hz, 550W
1
20 L
80 mm
DC brushless motor
18/10 W
100-1500 rpm
LCD, ±1rpm
Stainless steel with ceramic coated
φ135 mm
500 W
RT-340℃
LCD
±1(<100℃), ±1%(>100℃)
360℃
PT1000, ±0.2℃
160×280×85 mm
2.8 kg
Yes
IP42
5-40℃, 80%RH
P/NTYPEDESCRIPTION
4499-0052
4499-0053
4499-0054
4499-0055
4499-0010
4421-9900
4499-0011
4499-0013
18900080
18900081
18900082
18900083
PT1000-A
PT1000-B
18900017
F101
Reaction block, aluminum, for 50ml round flask
Reaction block, aluminum, for 100ml round flask
Reaction block, aluminum, for 250ml round flask
Reaction block, aluminum, for 500ml round flask
Temperature sensor, 230mm length
Temperature sensor with glass coated, 230mm length
Support clamp of PT1000, suitable for MS-H-Pro+
Protective cover, for hotplate model, maximum temperature 135 ℃
TYPEDESCRIPTION
POWER SUPPLY
P/N
MS-H-Pro+LCD digital magnetic hotplate stirrer, the
heating temperature is up to 340°C, stainless
steel with ceramic coatedhotplate
Cn Plug, 220V/50Hz/60Hz
Euro Plug, 200-240V/50Hz/60Hz
UK Plug, 200-240V/50Hz/60Hz
USA Plug, 100-120V/50Hz/60Hz
4421-3001
4421-3002
4421-3003
4421-3004
