FlatSpin
You are here: Home » Products » Mixing and Centrifugation » Flatspin » FlatSpin
Share to:

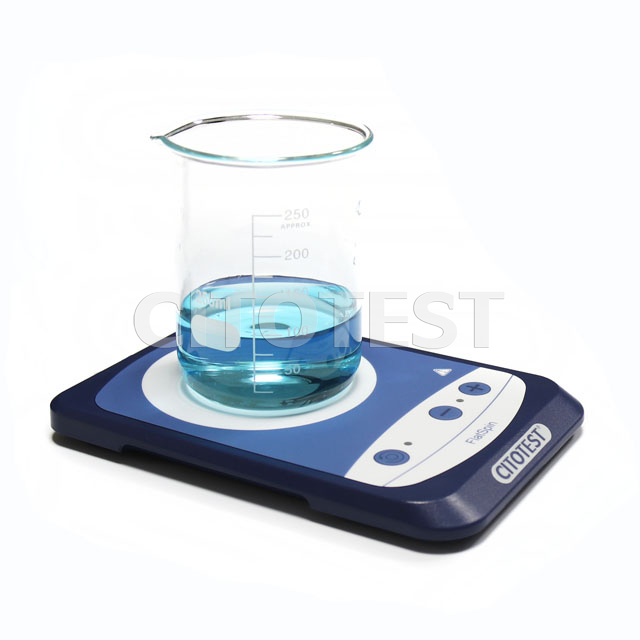

FlatSpin

With excellent stirring functionality, the ultra-flat magnetic stirrer is easily portable and saves precious space, making it an excellent addition to any laboratory.

·Ultra-flat, space-saving design
·Stirring speed range: 15 - 1500 rpm
·Automatic rotation-reversing stirring for better mixing results
·PET work plate provides excellent chemical resistance
·Ultra silence and vibration-free

SPECIFICATIONSFlatSpin
Electrical
Stirring position
Max. stirring quantity[H2O]
Max. magnetic bar[L]
Motor type
Motor rating input/output
Speed range
Speed display
Work plate material
Dimension of work plate
Dimensions[W×D×H]
Weight
Protection class acc. DIN EN60529
Work environment
100-120/200-240V, 50/60Hz, 5W
1
0.8L
40 mm
DC motor
3 W
15-1500 rpm
Button
PET
Φ90 mm
175×120×15 mm
0.3 kg
IP65
5-40℃, 80%RH
TYPEDESCRIPTIONPOWER SUPPLYP/N
FlatSpinUltra-flat Compact
Magnetic Stirrer, PET work plate
Cn Plug, 220V/50Hz/60Hz
Euro Plug, 200-240V/50Hz/60Hz
UK Plug, 200-240V/50Hz/60Hz
USA Plug, 100-120V/50Hz/60Hz
4420-6001
4420-6002
4420-6003
4420-6004
