Membranes are important components of filtration systems. They are microporous plastic films with specific
pore size ratings, and retain particles or microorganisms larger than their poresize primarily by surface
capture. All of them are made of medical grade materials, available in five kinds of membranes with 0.22µm
(sterilizing grade) or 0.45µm (clarification grade), sterilized by gamma, RNase-free, DNase-free and
non-pyrogenic.
| |

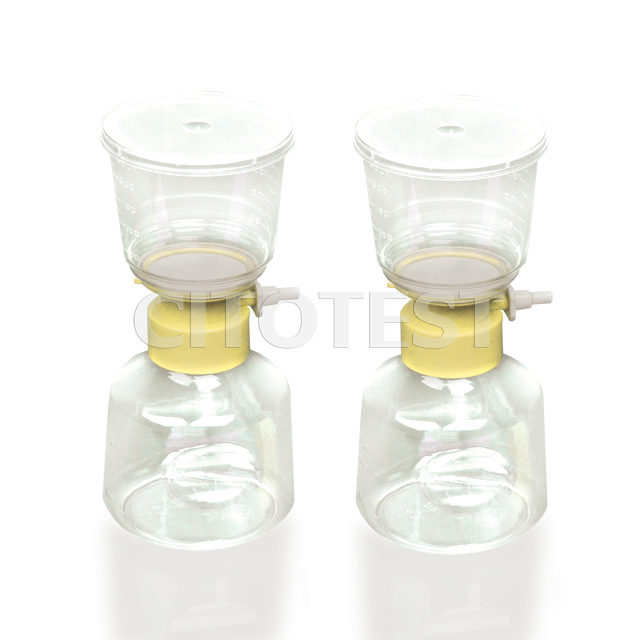

Vacuum Filtration System
Designed for vacuum filtration of different solutions
● Gamma sterile, RNase-free, DNase-free and Non-pyrogenic
● Four types of membranes include PVDF, PES, MCE and NYLON optional
VACUUM FILTRATION SYSTEM
P/N | PORE SIZE(µm) | VOL. (mL) | DIA. (mm) | H (mm) | |||
PVDF | PES | MCE | NYLON | ||||
2307-1201 2307-1202 2307-1204 2307-1203 2307-1301 2307-1302 2307-1304 2307-1303 | 2307-3201 2307-3202 2307-3204 2307-3203 2307-3301 2307-3302 2307-3304 2307-3303 | 2307-2201 2307-2202 2307-2204 2307-2203 2307-2301 2307-2302 2307-2304 2307-2303 | 2307-4201 2307-4202 2307-4204 2307-4203 2307-4301 2307-4302 2307-4304 2307-4303 | 0.22 0.22 0.22 0.22 0.45 0.45 0.45 0.45 | 150 250 500 1000 150 250 1000 500 | 50 50 91 75 50 50 91 75 | 156 200 245 310 156 200 245 310 |

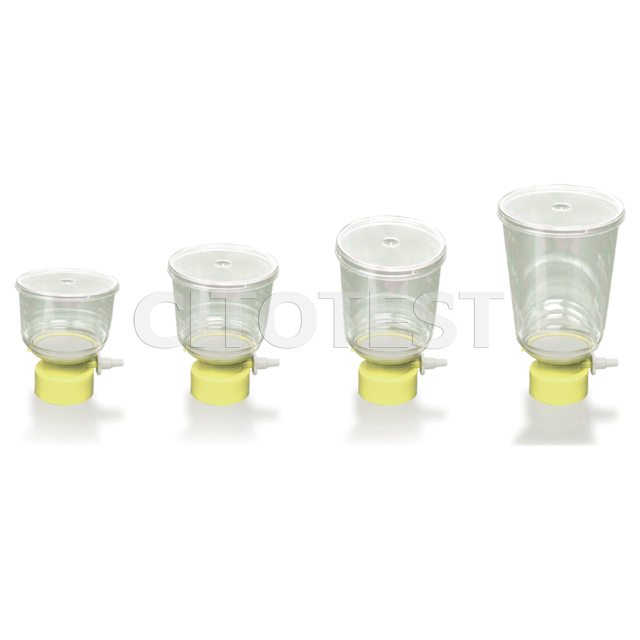

Vacuum Filter Units
VACUUM FILTER UNITS
P/N | PORE SIZE(µm) | VOL. (mL) | DIA. (mm) | H (mm) | |||
PVDF | PES | MCE | NYLON | ||||
2307-1205 2307-1206 2307-1208 2307-1207 2307-1305 2307-1306 2307-1308 2307-1307 | 2307-3205 2307-3206 2307-3208 2307-3207 2307-3305 2307-3306 2307-3308 2307-3307 | 2307-2205 2307-2206 2307-2208 2307-2207 2307-2305 2307-2306 2307-2308 2307-2307 | 2307-4205 2307-4206 2307-4208 2307-4207 2307-4305 2307-4306 2307-4308 2307-4307 | 0.22 0.22 0.22 0.22 0.45 0.45 0.45 0.45 | 150 250 500 1000 150 250 1000 500 | 50 50 91 75 50 50 91 75 | 156 200 245 310 156 200 245 310 |

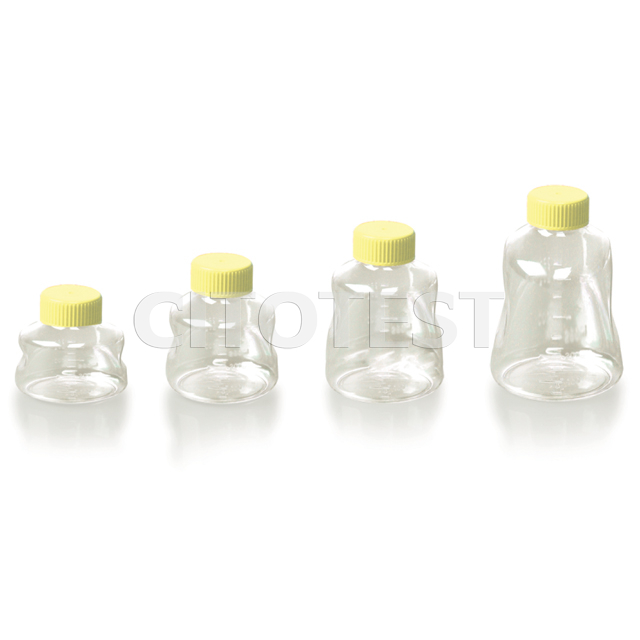

Filter Unit Receivers
P/N | VOL.(mL) | PACKING |
2307-5015 2307-5025 2307-5100 2307-5050 | 150 250 1000 500 | 24pcs/carton 24pcs/carton 12pcs/carton 12pcs/carton |
